AR-15

This Video shows a ear bud being used to center the lever, Due to our tight tolerances this is no longer needed, The centering block in your kit is only used if you have a M16 Wide pocket lower (very rare)

Taurus TX22

MP5

Kriss Vector

Glock

Install Tips

​​

Modifications possibly needed.

  • When assembled, if the BCG gets stuck when pulled to the rear, this id usually a clearance issue between the lever, BCG, and upper. First, verify the lower is not a high shelf lower (we have a list on our FAQ, but always double check your own part). If it is a low shelf lower, you can sand down or cut the rear of the upper opening back. WE RECCOMEND A SANDING DRUM ON A DREMEL TOOL  (see below)

  • When first used, if you experience light primer strikes or hammer follow symptoms (typically 1-2 rounds are fired then the trigger is dead), you should replace the buffer with an H2 or H3 buffer. You may also adjust the gas block, if equipped. This resolves the issue in 99% of scenarios and we recommend using a H3 buffer with sliding weights inside.

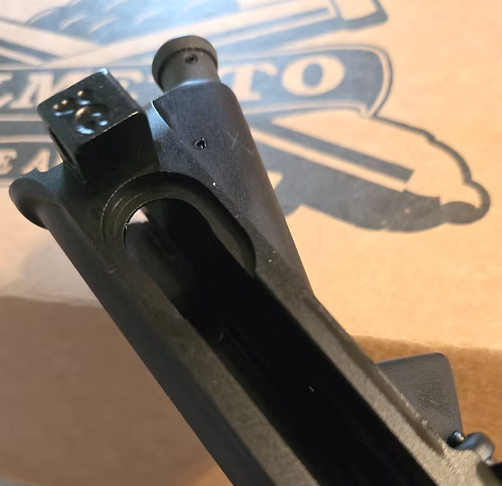

Upper Cut Example

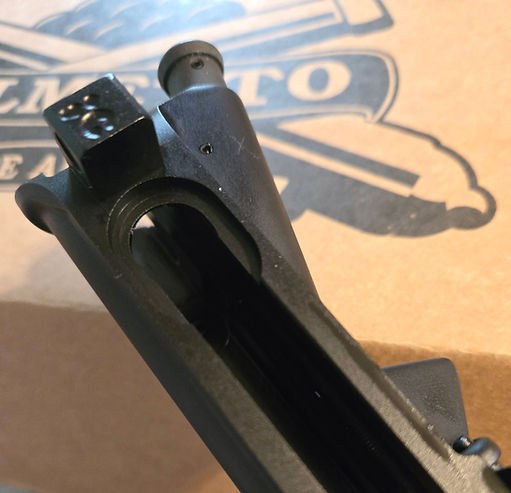

Before Cut

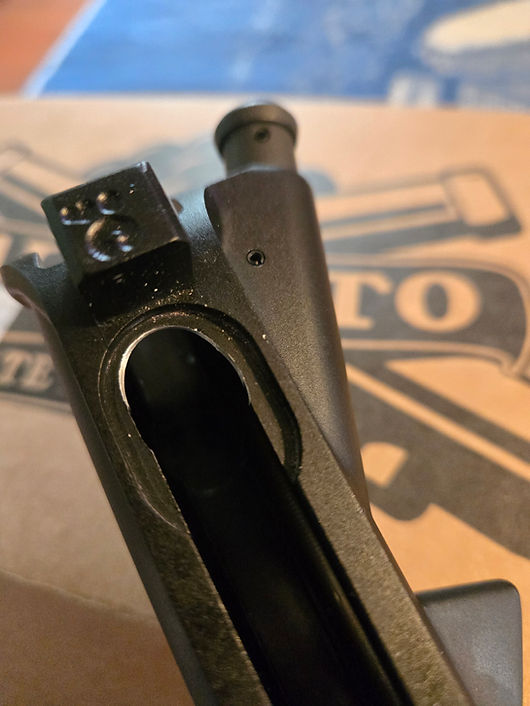

After cut

​

​

!
